CBFC-1000

Printer Friendly
Available
CBFC-1000
CBFC-1000 CBFC-1000 CBFC-1000 CBFC-1000

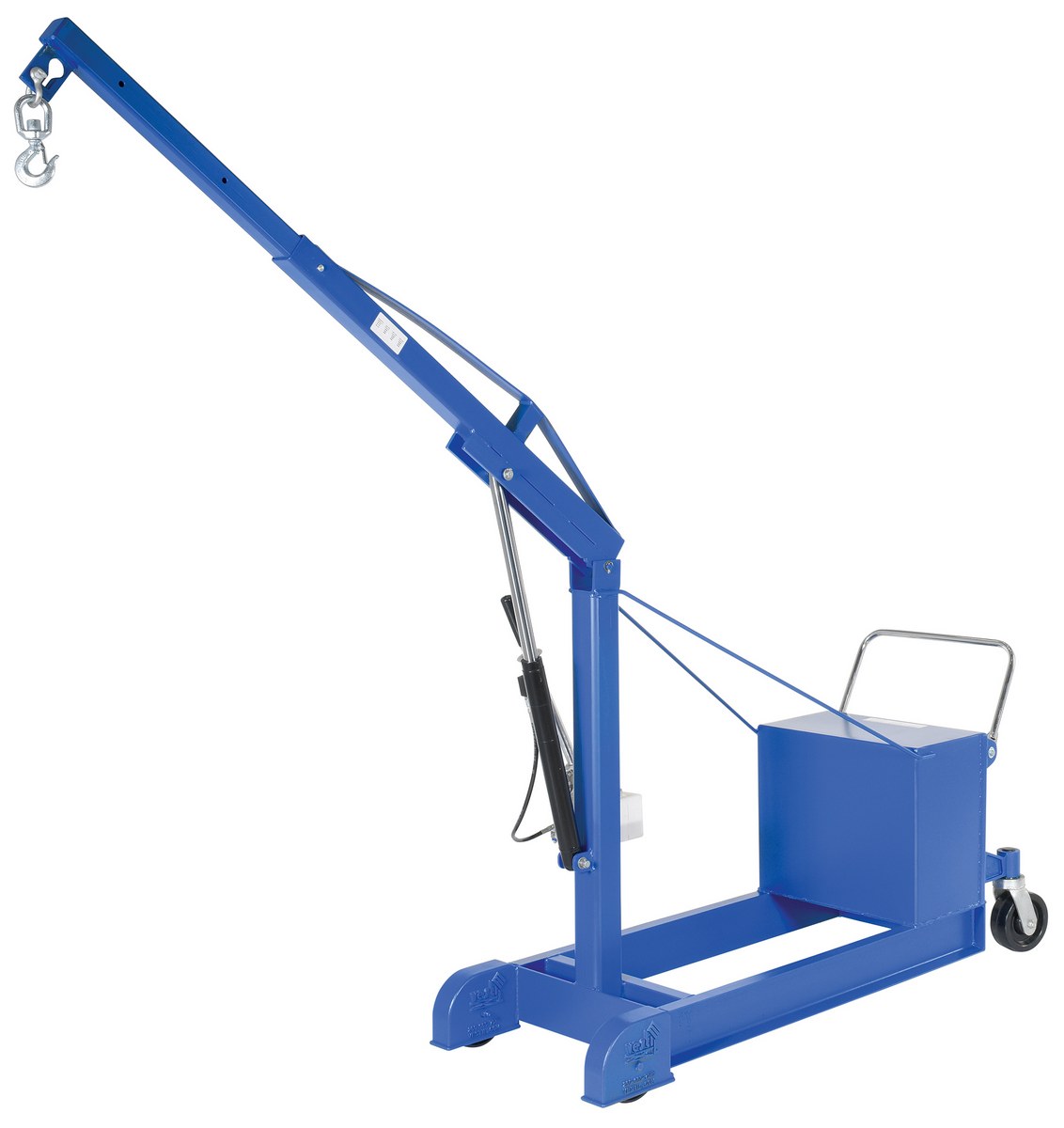

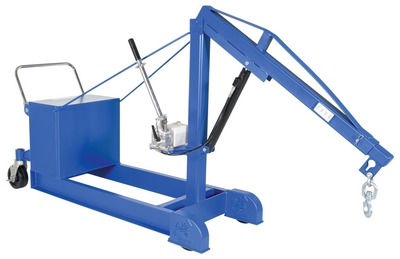

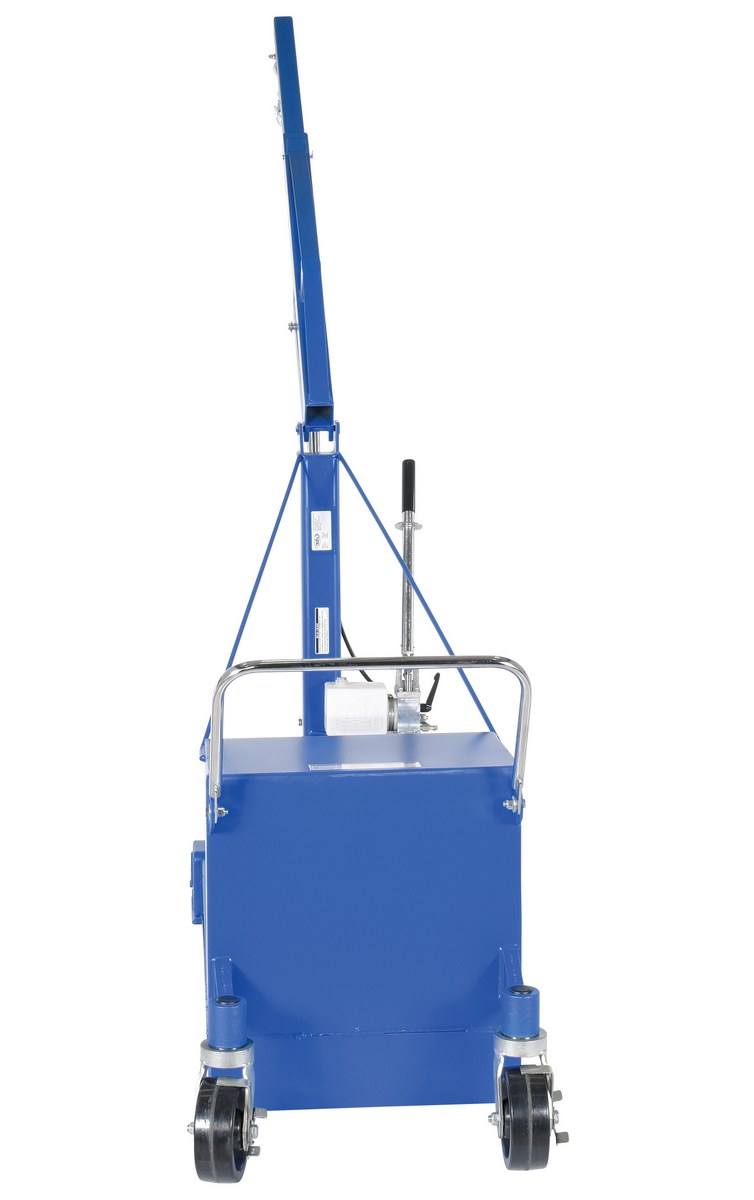

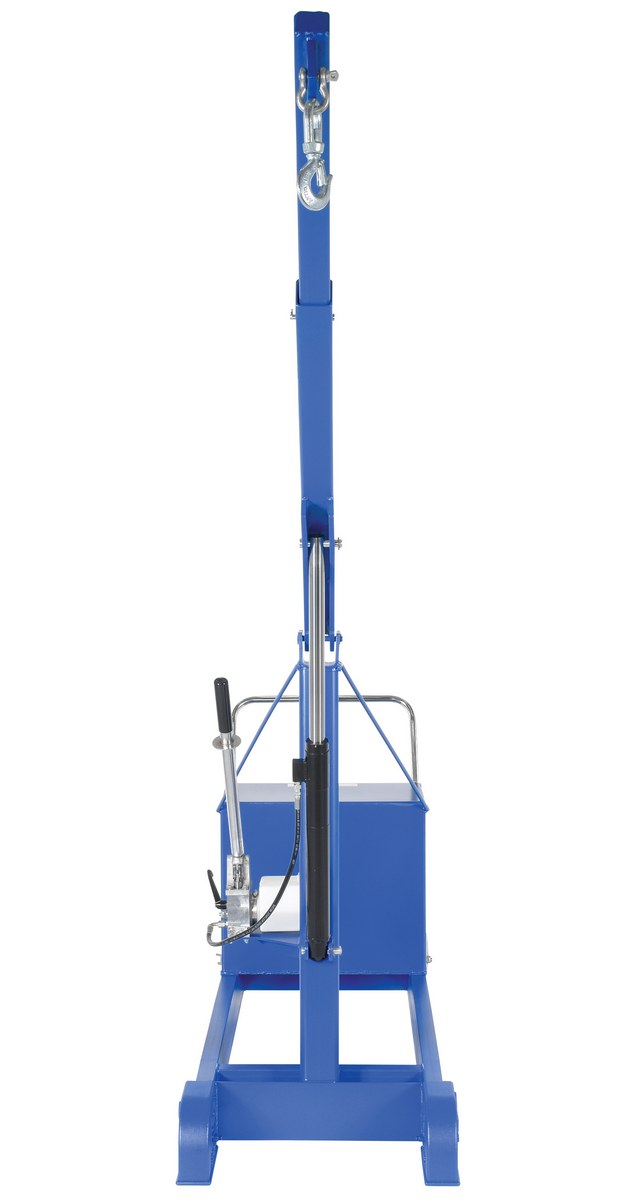

Steel Counter Balance Floor Crane 1000 Lb. Capacity Blue

This Counter Balanced floor crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight, hard to reach areas. Counterbalance included. Welded steel construction.

  • Unique design allows access to hard to reach areas
  • Counterbalance weights eliminate the need for legs
  • Telescoping boom allows for greater reach when needed
  • Solid steel construction provides a long lasting rugged use
Assembled Wt.(lbs.): 1776 Assembled Size: 29"W x 145.25"L x 102"H

Total Ship Wt.(lbs.): 1910 (only 1 package) Package 1 Size: 32"W x 121"D x 64"H Color: Blue

Uniform Capacity (lb.): 1,000 Power Source: Manual Hand Pump Overall Length (in.): 145-1/4
Overall Width (in.): 29 Overall Height (in.): 102 Base Length (in.): 80
Base Width (in.): 29 Boom Length Minimum (in.): 53-1/2 Boom Length Maximum (in.): 77-1/2
Hook Height Minimum (in.): 5 Hook Height Maximum (in.): 90 Adjustable Length: (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.): 500 Maximum Load at 51-1/4" (lb.): 700 Maximum Load at 39-1/4" (lb.): 1,000
Design: Counter Balance Rigid Caster Quantity and Size (in.): (2) 8 x 2 Rigid Caster Material: Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.): (2) 8 x 3 Swivel Caster Material: Phenolic Finish: Liquid Paint

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CBFC-1000
Available
CBFC-1000

Steel Counter Balance Floor Crane 1000 Lb. Capacity Blue

This Counter Balanced floor crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a manual hydraulic hand pump. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs. This makes the unit easier to maneuver and allows the crane to reach tight, hard to reach areas. Counterbalance included. Welded steel construction.

  • Unique design allows access to hard to reach areas
  • Counterbalance weights eliminate the need for legs
  • Telescoping boom allows for greater reach when needed
  • Solid steel construction provides a long lasting rugged use
Dimensions: 29"W x 145.25"L x 102"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1910 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,000 Power Source: Manual Hand Pump Overall Length (in.): 145-1/4
Overall Width (in.): 29 Overall Height (in.): 102 Base Length (in.): 80
Base Width (in.): 29 Boom Length Minimum (in.): 53-1/2 Boom Length Maximum (in.): 77-1/2
Hook Height Minimum (in.): 5 Hook Height Maximum (in.): 90 Adjustable Length: (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.): 500 Maximum Load at 51-1/4" (lb.): 700 Maximum Load at 39-1/4" (lb.): 1,000
Design: Counter Balance Rigid Caster Quantity and Size (in.): (2) 8 x 2 Rigid Caster Material: Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.): (2) 8 x 3 Swivel Caster Material: Phenolic Finish: Liquid Paint
