CBFC-1000-AIR

Printer Friendly
Available
CBFC-1000-AIR
CBFC-1000-AIR

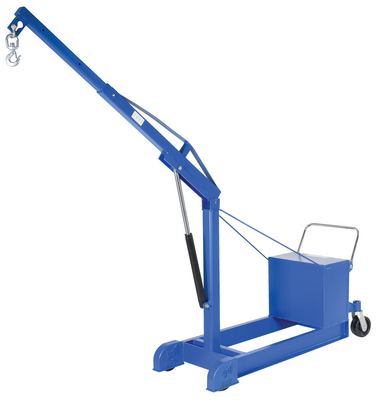

Steel Air Counter Balance Floor Crane 1000 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised by utilizing and air operation function. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • Air powered for simple shop use
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Assembled Wt.(lbs.): 1776 Assembled Size: 29"W x 145.25"L x 102"H

Total Ship Wt.(lbs.): 1906 (only 1 package) Package 1 Size: 32"W x 122"D x 64"H Color: Blue Non-Returnable

Uniform Capacity (lb.): 1,000 Power Source: Air Overall Length (in.): 145-1/4
Overall Width (in.): 29 Overall Height (in.): 102 Base Length (in.): 80
Base Width (in.): 29 Boom Length Minimum (in.): 53-1/2 Boom Length Maximum (in.): 77-1/2
Hook Height Minimum (in.): 5 Hook Height Maximum (in.): 90 Adjustable Length: (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.): 500 Maximum Load at 51-1/4" (lb.): 700 Maximum Load at 39-1/4" (lb.): 1,000
Design: Counter Balance Rigid Caster Quantity and Size (in.): (2) 8 x 2 Rigid Caster Material: Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.): (2) 8 x 3 Swivel Caster Material: Phenolic Finish: Liquid Paint

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CBFC-1000-AIR
Available
CBFC-1000-AIR

Steel Air Counter Balance Floor Crane 1000 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised by utilizing and air operation function. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • Air powered for simple shop use
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Dimensions: 29"W x 145.25"L x 102"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1906 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 1,000 Power Source: Air Overall Length (in.): 145-1/4
Overall Width (in.): 29 Overall Height (in.): 102 Base Length (in.): 80
Base Width (in.): 29 Boom Length Minimum (in.): 53-1/2 Boom Length Maximum (in.): 77-1/2
Hook Height Minimum (in.): 5 Hook Height Maximum (in.): 90 Adjustable Length: (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.): 500 Maximum Load at 51-1/4" (lb.): 700 Maximum Load at 39-1/4" (lb.): 1,000
Design: Counter Balance Rigid Caster Quantity and Size (in.): (2) 8 x 2 Rigid Caster Material: Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.): (2) 8 x 3 Swivel Caster Material: Phenolic Finish: Liquid Paint
