CBFC-500-DC

Printer Friendly
Available
CBFC-500-DC
CBFC-500-DC

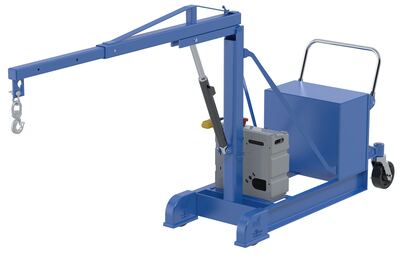

Steel DC Counter Balance Floor Crane 500 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • DC powered for use in multiple areas
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Assembled Wt.(lbs.): 1190 Assembled Size: 29"W x 135.125"L x 102"H

Total Ship Wt.(lbs.): 1277 (only 1 package) Package 1 Size: 45"W x 102"D x 64"H Color: Blue

Uniform Capacity (lb.): 500 Power Source: 12V DC Overall Length (in.): 135-1/8
Overall Width (in.): 29 Overall Height (in.): 102-1/4 Base Length (in.): 70
Base Width (in.): 29 Boom Length Minimum (in.): 53-1/2 Boom Length Maximum (in.): 77-1/2
Hook Height Minimum (in.): 5 Hook Height Maximum (in.): 90 Adjustable Length: (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.): 300 Maximum Load at 51-1/4" (lb.): 400 Maximum Load at 39-1/4" (lb.): 500
Design: Counter Balance Rigid Caster Quantity and Size (in.): (2) 8 x 2 Rigid Caster Material: Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.): (2) 8 x 3 Swivel Caster Material: Phenolic Hook Material: Steel
Hook Opening (in.): 1-1/32 Specifications: ASME-PASE Control: Handheld Push Button w/ 8 ft. Extended Coil Cord
Finish: Liquid Paint

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: CBFC-500-DC
Available
CBFC-500-DC

Steel DC Counter Balance Floor Crane 500 Lb. Capacity Blue

This crane has an adjustable boom to allow for maximum adjustment and versatility to lift a variety of loads. Boom is raised with a push of a button on DC powered units. Boom also telescopes out for greater reach. The counterbalance design eliminates the need for front legs, making the unit easier to maneuver and ideal for reaching tight, hard to reach areas. Units roll on two (2) rigid 8" x 2" glass-filled nylon and two (2) swivel 8" x 3" phenolic caster with side brake. Counterbalance included. Welded steel construction.

  • DC powered for use in multiple areas
  • Maneuverable for precise positioning
  • Casters for smooth transference
  • Counterbalanced for all around stability
Dimensions: 29"W x 135.125"L x 102"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 1277 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 500 Power Source: 12V DC Overall Length (in.): 135-1/8
Overall Width (in.): 29 Overall Height (in.): 102-1/4 Base Length (in.): 70
Base Width (in.): 29 Boom Length Minimum (in.): 53-1/2 Boom Length Maximum (in.): 77-1/2
Hook Height Minimum (in.): 5 Hook Height Maximum (in.): 90 Adjustable Length: (3) Positions Spaced 12" Apart
Maximum Load at 63-1/4" (lb.): 300 Maximum Load at 51-1/4" (lb.): 400 Maximum Load at 39-1/4" (lb.): 500
Design: Counter Balance Rigid Caster Quantity and Size (in.): (2) 8 x 2 Rigid Caster Material: Glass-Filled Nylon
Swivel Caster w/Side Brake Quantity and Size (in.): (2) 8 x 3 Swivel Caster Material: Phenolic Hook Material: Steel
Hook Opening (in.): 1-1/32 Specifications: ASME-PASE Control: Handheld Push Button w/ 8 ft. Extended Coil Cord
Finish: Liquid Paint
