FHA-2-12-10-ALO

Printer Friendly
Available
FHA-2-12-10-ALO
FHA-2-12-10-ALO

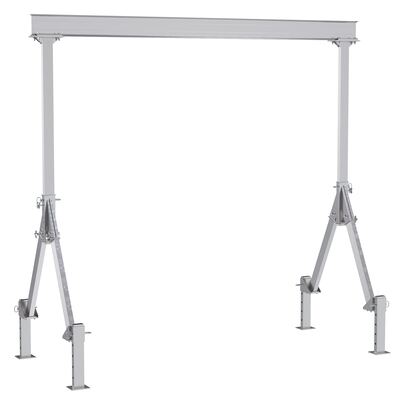

Aluminum Fixed Height Gantry Crane With Adjustable Leveling Option 12 ft. X 10 ft. 2000 lb. Capacity Silver

A fixed height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in 4" increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.

  • Leveling adjustment can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately
Assembled Wt.(lbs.): 315 Assembled Size: 64"W x 144"L x 136"H

Total Ship Wt.(lbs.): 375 (only 1 package) Package 1 Size: 29"W x 144"D x 18"H Color: Silver

Uniform Capacity (lbs.): 2,000 Overall Length (in.): 144 Overall Width (in.): 64
Maximum Raised Height (in.): 136 Minimum Raised Height (in.): 120 Beam Length (in.): 144
Beam Height (in.): 8 Flange Width (in.): 4 Increment Height Adjustment (in.): 4
Maximum Clearance (in.): 128 Minimum Clearance (in.): 112

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: FHA-2-12-10-ALO
Available
FHA-2-12-10-ALO

Aluminum Fixed Height Gantry Crane With Adjustable Leveling Option 12 ft. X 10 ft. 2000 lb. Capacity Silver

A fixed height aluminum gantry crane is a valuable asset in warehousing and manufacturing settings. The crane has an all-aluminum construction making it corrosion resistant and perfect for outdoor use. The fixed height gives the user consistent familiarity when raising/lowering items. If a change in height is needed, the adjustable legs allow the crane to be raised or lowered in 4" increments. Each leg has a pin style adjustment design with pre drilled alteration holes. With a rectangle shaped base included on each leg, the crane has a strong foundational support.

  • Leveling adjustment can be completed with support from fork truck or other overhead lifting device
  • Flat footed design provides surface stability
  • Beam length offers ample space for lifting and lowering
  • Lifting hoist/trolley available separately
Dimensions: 64"W x 144"L x 136"H Sell UOM: -- Color: Silver
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 375 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lbs.): 2,000 Overall Length (in.): 144 Overall Width (in.): 64
Maximum Raised Height (in.): 136 Minimum Raised Height (in.): 120 Beam Length (in.): 144
Beam Height (in.): 8 Flange Width (in.): 4 Increment Height Adjustment (in.): 4
Maximum Clearance (in.): 128 Minimum Clearance (in.): 112
