FHSN-4-15-VG

Printer Friendly
Available
FHSN-4-15-VG
FHSN-4-15-VG FHSN-4-15-VG

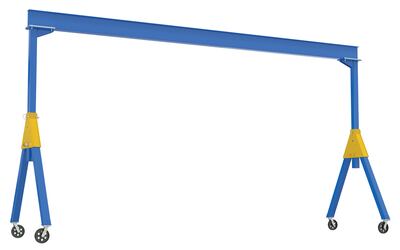

Steel Knockdown Fixed Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. 4000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • Complies with applicable ANSI specifications
Assembled Wt.(lbs.): 876 Assembled Size: 64.5"W x 180"L x 128.5"H

Total Ship Wt.(lbs.): 904 (Multiple Packages: P1: 679 lbs + P2: 225 lbs) Package 1 Size: 66"W x 77"D x 19"H Color: Blue

Uniform Capacity (lb.): 4,000 Overall Beam Length (in.): 180 Usable Beam Length (in.): 149-3/4
Fixed Clearance (in.): 120-3/8 Beam Height (in.): 8-1/8 Flange Width (in.): 4

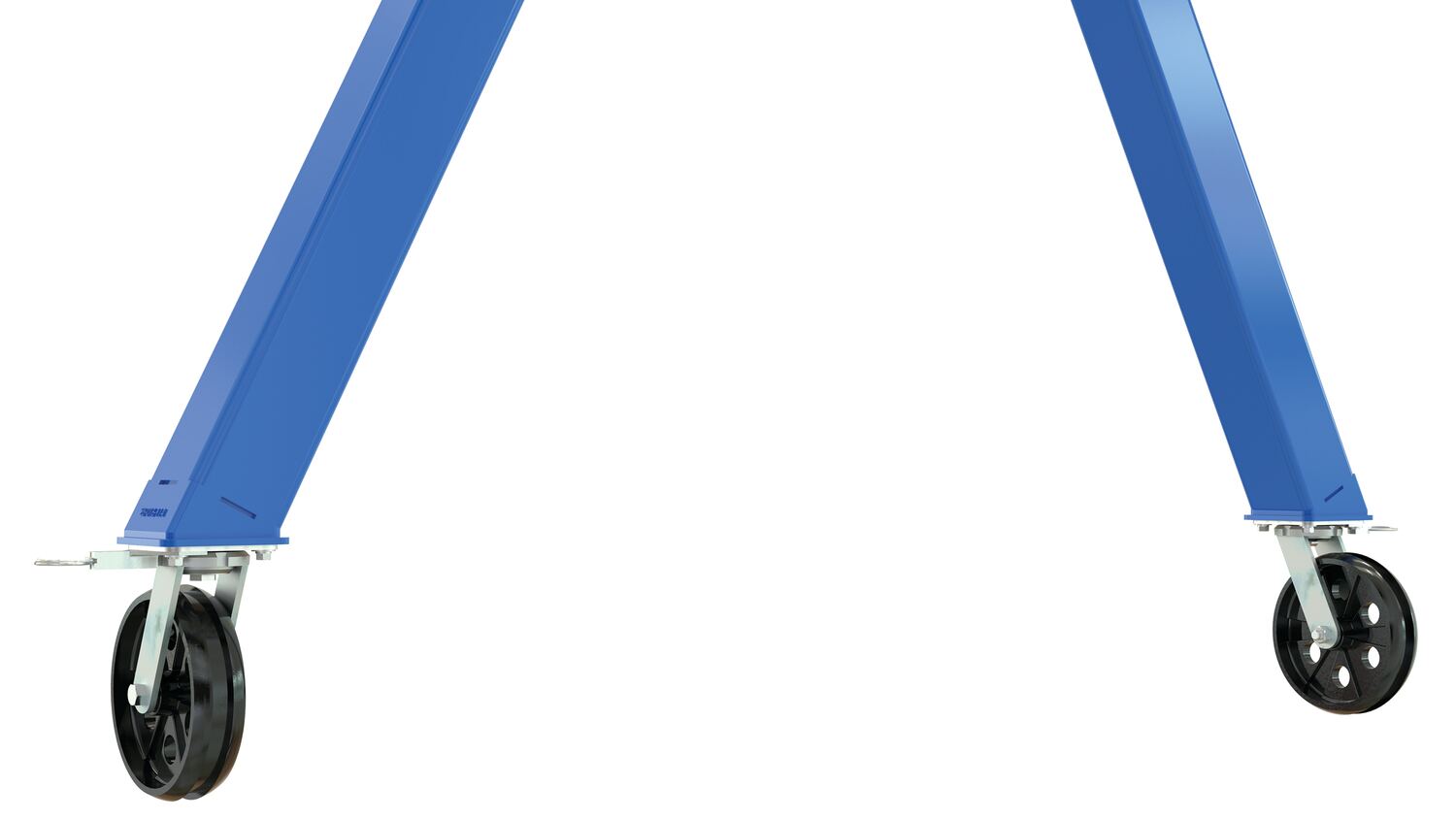

Caster Qty/Diameter/Width (in.): (4) 8 x 3 Caster Material: Ductile Steel Caster/Wheel Locking?: Yes

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: FHSN-4-15-VG
Available
FHSN-4-15-VG

Steel Knockdown Fixed Gantry Crane with V-Groove Ductile Steel Casters 15 Ft. 4000 Lb. Capacity Blue

The fixed height knockdown industrial steel Gantry cranes are uniquely designed to be disassembled when not in use for compact storage and easier transportation / shipping from one job site to another. Facilitate easy mobility from one area to another with total locking casters. The total locking casters lock the rigging in any position and locks the wheel from rotating. Features quick setup design. Do not move units while loaded. Painted blue finish. Designed for semi-permanent or permanent applications. Requires assistance from fork truck to set-up.

  • Knockdown unit, assembly required
  • Heavy-duty welded steel construction for long lasting use
  • Beam length allows for use with items, both large and small
  • Complies with applicable ANSI specifications
Dimensions: 64.5"W x 180"L x 128.5"H Sell UOM: -- Color: Blue
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 679 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Uniform Capacity (lb.): 4,000 Overall Beam Length (in.): 180 Usable Beam Length (in.): 149-3/4
Fixed Clearance (in.): 120-3/8 Beam Height (in.): 8-1/8 Flange Width (in.): 4
Caster Qty/Diameter/Width (in.): (4) 8 x 3 Caster Material: Ductile Steel Caster/Wheel Locking?: Yes
